Export Manager Overview
The KANINE Version 5.0 Export Manager is designed to allow users to work on laptops that are
disconnected from any agency networks during their shift and then later, export any entered data to a
shared database on
the agency server.
This functionality
allows the user to
always have access
to their K-9 records
and, at the same
time, enables
supervisors to review
all records from all
handlers from their
desktops and create
collective reports
using data from all of
the K-9 handlers.
KANINE 5.0 can
facilitate this transfer
of data in one of two
ways; by either an
occasional direct
connection to the
agency network, or
by using a removable
drive as a transport medium.
What does this mean? The first option would be applicable if your computer was setup to have a
connection to your agency’s network either A) all the time, B) When you pull into the parking lot and can
connect via wireless Internet to the agency network, or C) When you plug into a network cable in the office
that connects you to the agency network.
The second (Using a removable drive) can be applicable for any user by plugging in a USB or SD card,
transferring the KANINE data to the removable drive via the built in USB Transfer Utility (Main
Screen/Tools/USB Transfer Utility).
The following help will attempt to familiarize you with the different options available to enable the transfer
of data to a server based database.
Introduction
The Export process only really relies on two things. Those things are:
•
A) A copy of the ‘CBD Data’ folder must be copied to the server, with full read/write permissions set
for anyone who will be accessing the contents of the folder.
•
B) The Export Path must be set in the exporting user’s database. (ie. On the laptop of the user that
will be exporting data).
Setting your agency up for exporting functionality
1.
The first step in setting up a disconnected/ export scenario is to install the KANINE software on
remote computers (Laptops).
2.
Register the software on the remote computers. (It can be beneficial to allow some time between
this step and the next so that the K9 supervisor (or single handler) can have time to modify selection
lists in the KANINE software before performing the next step.)
3.
Copy the ‘C:\CBD Data’ folder from the K-9 supervisor (or single K-9 handler) laptop to a shared,
accessible location on the agency server. IMPORTANT: Be sure to allow full read write permissions
on the ‘CBD Data’ folder that is copied to the server.
4.
Set the ‘Export Path’ on each exporting computer to point to the K95.mdb file inside of the ‘CBD
Data’ folder that you copied to the server. This path can be set by going to Main
screen/Tools/Settings and then clicking on the ‘Export Settings’ tab.
All that’s left, is to perform the export....
What does the export do?
The export process is, for the most part, a one way transfer. It allows the user to send records to the
shared database so that records from all users are in a single database. This allows anyone that connects
to the shared database (Ie. Supervisors who have KANINE installed on their desktop computer) to view
records entered by all users and print records using data from all all records entered by all K9 handlers.
KANINE 5.0 lets you share people names that you and other users have entered
One of the processes included in the KANINE 5.0 Export Manager allows the user to selectively export
any names entered into the ‘Master Names List’ to the shared Database and import any other names that
have been exported by other K-9 handlers. What does this do? It enables each user to select name data
that other users have previously entered, so that they do not have to re-enter the person’s information.

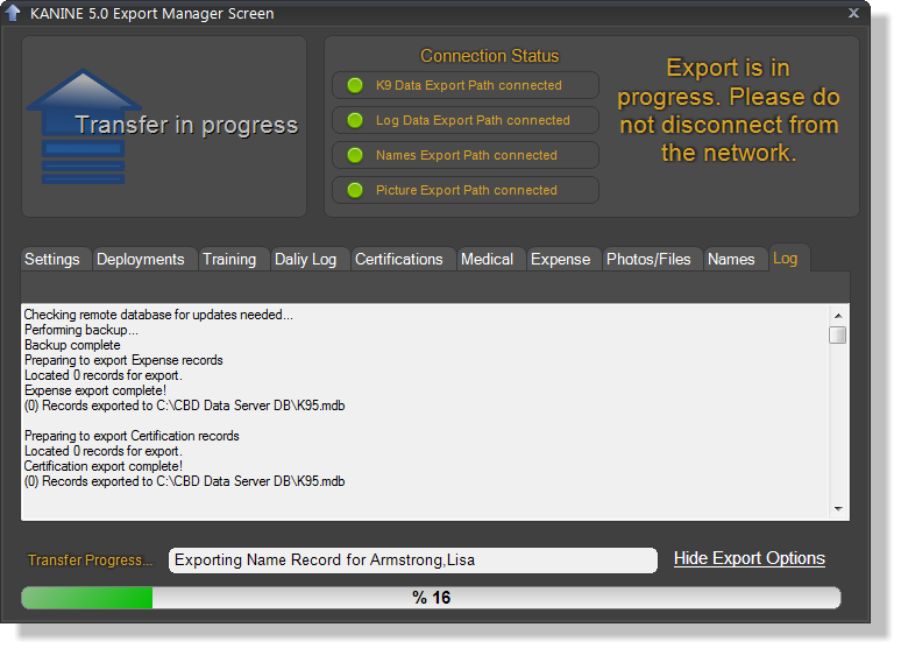

Features (Note that more export functionality is coming)
•
Automatic connection check
•
Single Button start
•
Transfer progress indicator
•
Optional Auto-close
•
Option to export for all users, or just the logged in user
•
Optional pre-export backup
•
Ability to re-export selected records to send any changes to the server
•
Logging Feature which gives the ability to view transfer specifics
•
Exports:
o
Deployment Records
o
Training Records
o
Certification Records
o
Daily Log Records
o
Medical Records
o
Expense Records
o
Photos and Files
o
Names from the Master Name List
Click here for information about how to use the Export Manager
